Make A Graph

Dataset Title:	Water Level measured from a Pressure Tide Gauge Instrument Deployed in Choke Pass on Calvert Island Research
Institution:	Hakai Institute (Dataset ID: HakaiCalvertCP1TideGauge)
Range:	longitude = -128.12103 to -128.12103°E, latitude = 51.670666 to 51.670666°N, time = 2020-01-01T08:00:00Z to 2021-01-01T07:55:00Z
Information:	Summary \| License \| FGDC \| ISO 19115 \| Metadata \| Background \| Subset \| Data Access Form \| Files

To work correctly, this web page requires that JavaScript be enabled in your browser. Please:
1) Enable JavaScript in your browser:
      • Chrome: "Settings : Advanced : Privacy and security : Site Settings : JavaScript"
      • Firefox: (it should be always on!)"
      • Opera: "Settings : Websites : JavaScript"
      • Safari: "Safari : Preferences : Security : Enable JavaScript"
2) Reload this web page.

Graph Type:

X Axis:

Y Axis:

Color:

Constraints

Optional
Constraint #1

Optional
Constraint #2

Server-side Functions

distinct()

Hover here to see a list of options. Click on an option to select it.

Graph Settings

Marker Type:

Size:

Color:

Color Bar:

Continuity:

Scale:

Minimum:

Maximum:

N Sections:

Draw land mask:

Y Axis Minimum:

Maximum:

(Please be patient. It may take a while to get the data.)

Optional:
Then set the File Type: (File Type information)
and

or view the URL:
(Documentation / Bypass this form

)

Click on the map to specify a new center point.

Zoom:

Time range:

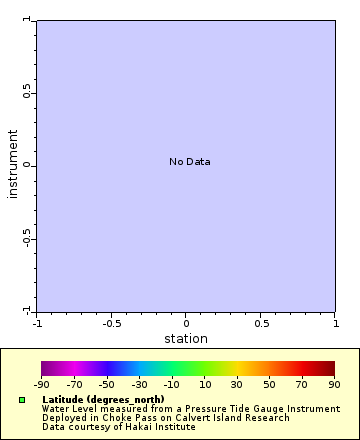

[The graph you specified. Please be patient.]

Things You Can Do With Your Graphs

Well, you can do anything you want with your graphs, of course. But some things you might not have considered are:

Web page authors can embed a graph of the latest data in a web page using HTML <img> tags.
Anyone can use ERDDAPs Slide Sorter to build a personal web page that displays graphs with the latest data (or other images or HTML content), each in its own, draggable slide.

The Dataset Attribute Structure (.das) for this Dataset

Attributes {
 s {
  station {
    String actual_range
"CP01
CP01";
    String cf_role "timeseries_id";
  }
  instrument {
    String actual_range
"RBRSoloD SN079156
RBRSoloD SN079156";
  }
  latitude {
    String _CoordinateAxisType "Lat";
    Float64 _FillValue NaN;
    Float64 actual_range 51.67066666666667, 51.67066666666667;
    String axis "Y";
    Float64 colorBarMaximum 90.0;
    Float64 colorBarMinimum -90.0;
    String ioos_category "Location";
    String long_name "Latitude";
    Float64 missing_value NaN;
    String standard_name "latitude";
    String units "degrees_north";
  }
  longitude {
    String _CoordinateAxisType "Lon";
    Float64 _FillValue NaN;
    Float64 actual_range -128.12103333333334, -128.12103333333334;
    String axis "X";
    Float64 colorBarMaximum 180.0;
    Float64 colorBarMinimum -180.0;
    String ioos_category "Location";
    String long_name "Longitude";
    Float64 missing_value NaN;
    String standard_name "longitude";
    String units "degrees_east";
  }
  time {
    String _CoordinateAxisType "Time";
    Float64 actual_range 1.5778656e+9, 1.6094877e+9;
    String axis "T";
    String calendar "proleptic_gregorian";
    String ioos_category "Time";
    String long_name "Time";
    String standard_name "time";
    String time_origin "01-JAN-1970 00:00:00";
    String units "seconds since 1970-01-01T00:00:00Z";
  }
  instrument_depth {
    Float64 _FillValue NaN;
    Float64 actual_range 5.460498304267158, 10.586200201863932;
    String long_name "Instrument Depth";
    String standard_name "sea_floor_depth_below_sea_surface";
    String units "m";
  }
  water_height {
    Float64 _FillValue NaN;
    Float64 actual_range -2.714465899651815, 2.4112359979449582;
    String long_name "Water Level Above Mean Sea Level";
    Float64 missing_value NaN;
    String standard_name "height_above_mean_sea_level";
    String units "m";
  }
 }
  NC_GLOBAL {
    String _NCProperties "version=1|netcdflibversion=4.6.1|hdf5libversion=1.10.4";
    String cdm_data_type "TimeSeries";
    String cdm_timeseries_variables "station,instrument,latitude,longitude";
    String contributor_name "Barrette, Jessy;Hakai Institute;Hakai Institute;Tula Foundation";
    String contributor_role "custodian,author,pointOfContact,processor;owner,distributor;publisher;funder";
    String Conventions "COARDS, CF-1.6, ACDD-1.3";
    String creator_address "1002 Wharf Street";
    String creator_city "Victoria";
    String creator_country "Canada";
    String creator_email "info@hakai.org";
    String creator_institution "Hakai Institute";
    String creator_name "Hakai Institute";
    String creator_type "institution";
    String creator_url "hakai.org";
    String date_created "2024-07-18";
    String date_modified "2024-07-18T14:46:56.015Z";
    String doi "https://doi.org/10.21966/kqd6-1j57";
    Float64 Easternmost_Easting -128.12103333333334;
    String featureType "TimeSeries";
    Float64 geospatial_lat_max 51.67066666666667;
    Float64 geospatial_lat_min 51.67066666666667;
    String geospatial_lat_units "degrees_north";
    Float64 geospatial_lon_max -128.12103333333334;
    Float64 geospatial_lon_min -128.12103333333334;
    String geospatial_lon_units "degrees_east";
    String history
"Extract RBR Solo data with Ruskin software
Retrieve Atmospheric Pressure measured from Hakai's Pruth Dock Weather Station.
Convert Atmospheric pressure to dBar.
Substract atmospheric pressure from measured sea water pressure.
Derive depth from corrected sea water pressure.
 Generated a water_level variable centered around the mean sea level.
2024-11-05T03:54:44Z (local files)
2024-11-05T03:54:44Z https://catalogue.hakai.org/tabledap/HakaiCalvertCP1TideGauge.das";
    String id "6652a7a9-d27f-4cbe-ac04-435c238e991d";
    String infoUrl "https://catalogue.hakai.org/dataset/ca-cioos_6652a7a9-d27f-4cbe-ac04-435c238e991d";
    String institution "Hakai Institute";
    String instrument "RBR SoloD SN";
    String instrument_calibration "{\"1\": {\"name\": \"Pressure\", \"calibration\": \"35.32503 1933.8774 91.36211 -12.728503\", \"units\": \"dbar (dbar)\", \"rangingMode\": \"None\"}}";
    String instrument_firmware "3.270";
    String instrument_serial "079156";
    String keywords "Calvert island, CIOOS:seaSurfaceHeight, pressure, sea level";
    String keywords_vocabulary "CIOOS: CIOOS Essential Ocean Variables Vocabulary";
    String license "https://creativecommons.org/licenses/by/4.0";
    String metadata_form "https://hakaiinstitute.github.io/hakai-metadata-entry-form#/en/hakai/tV5qE0aUgaOjSVmgPgiZ6MyHuSy1/-Mknr8pYvIQKw4r-WTFd";
    String metadata_link "https://catalogue.hakai.org/dataset/ca-cioos_6652a7a9-d27f-4cbe-ac04-435c238e991d";
    String naming_authority "ca.cioos";
    Float64 Northernmost_Northing 51.67066666666667;
    String organization "Hakai Institute";
    String original_header "{\"header_info\": {}, \"Model\": \"RBRsolo\", \"Firmware\": \"3.270\", \"Serial\": \"079156\", \"HostVersion\": \"(Ruskin version number - 2.10.4)\", \"LoggerTime\": \"29-Aug-2020 23:06:10.664\", \"LoggingStartTime\": \"12-Feb-2020 21:20:00.000\", \"LoggingEndTime\": \"31-Dec-2099 00:00:00.000\", \"LoggingSamplingPeriod\": \"00:01:15\", \"NumberOfChannels\": \"1\", \"Channel\": {\"1\": {\"name\": \"Pressure\", \"calibration\": \"35.32503 1933.8774 91.36211 -12.728503\", \"units\": \"dbar (dbar)\", \"rangingMode\": \"None\"}}, \"Event\": {\"1\": {\"time\": \"12-Feb-2020 21:20:00.000\", \"sample\": \"1\", \"type\": \"Time synchronization marker\"}, \"2\": {\"time\": \"29-Aug-2020 23:05:46.000\", \"sample\": \"229334\", \"type\": \"User stopped the deployment\"}}, \"NumberOfSamples\": 229333}";
    String platform "mooring";
    String platform_vocabulary "https://vocab.nerc.ac.uk/collection/L06/current/";
    String progress "completed";
    String project "Oceanography";
    String publisher_city "Campbell River";
    String publisher_country "Canada";
    String publisher_institution "Hakai Institute";
    String publisher_name "Hakai Institute";
    String publisher_ror "https://ror.org/02pry0c91";
    String publisher_type "institution";
    String publisher_url "https://www.hakai.org/";
    String sourceUrl "(local files)";
    Float64 Southernmost_Northing 51.67066666666667;
    String standard_name_vocabulary "CF Standard Name Table v79";
    String subsetVariables "station,instrument";
    String summary "This dataset present a time series of water level measurements made by an RBR Solo pressure sensor deployed by the Hakai Institute near the Calvert Island Research Station in the coastal region of Choke Pass. Sea Pressure collected by the instrument just above the sea bed was then corrected to substract the atmospheric pressure based on the Hakai Pruth Dock Weather Station. The resulting sea pressure was then converted to a depth with the Gibbs Sea Water TEOS-10 toolbox and substracted by the mean water level measured at the location.";
    String time_coverage_end "2021-01-01T07:55:00Z";
    String time_coverage_start "2020-01-01T08:00:00Z";
    String title "Water Level measured from a Pressure Tide Gauge Instrument Deployed in Choke Pass on Calvert Island Research";
    Float64 Westernmost_Easting -128.12103333333334;
  }
}

Using tabledap to Request Data and Graphs from Tabular Datasets

tabledap lets you request a data subset, a graph, or a map from a tabular dataset (for example, buoy data), via a specially formed URL. tabledap uses the OPeNDAP (external link)

Data Access Protocol (DAP) (external link)

and its selection constraints (external link)

The URL specifies what you want: the dataset, a description of the graph or the subset of the data, and the file type for the response.

(easy) You can get data by using the dataset's Data Access Form or Subset form. They make the URL for you.
(easy) You can make a graph or map by using the dataset's Make A Graph form. It makes the URL for you.
(not hard) You can bypass the forms and get the data or make a graph or map by generating the URL by hand or with a computer program or script.

Tabledap request URLs must be in the form
https://coastwatch.pfeg.noaa.gov/erddap/tabledap/datasetID.fileType{?query}
For example,
https://coastwatch.pfeg.noaa.gov/erddap/tabledap/pmelTaoDySst.htmlTable?longitude,latitude,time,station,wmo_platform_code,T_25&time>=2015-05-23T12:00:00Z&time<=2015-05-31T12:00:00Z
Thus, the query is often a comma-separated list of desired variable names, followed by a collection of constraints (e.g., variable<value), each preceded by '&' (which is interpreted as "AND").

For details, see the tabledap Documentation.

ERDDAP, Version 2.24
Disclaimers | Privacy Policy | Contact
